| Parameter | Detail |
| Motor Type | Brushless, fully enclosed |
| Output Power | ≥180W |
| Handpiece Weight | 1450 g |
| Noise Level | ≤75 dB |
| Temperature Rise | ≤25℃ |
| High-Speed Drill | 0-1250 RPM (±15%), Torque ≥4.5 N/M |
| Medium-Speed Drill | 0-850 RPM (±15%), Torque ≥6.8 N/M |
| Slow-Speed Drill | 0-300 RPM (±15%), Torque ≥10 N/M |
| Oscillating Saw | 12,500 oscillations/minute |
| Cranial Drill | 0-850 RPM (±15%), Torque ≥6.8 N/M |
| Chuck System | Detachable, autoclavable |
| Certifications | ISO 13485, FDA, CE |
Unmatched Brushless Motor Performance
The system’s fully enclosed brushless motor eliminates carbon brushes, delivering 180W+ power with zero friction, no replacements, and 50,000+ hours of lifespan.
Zero Maintenance: No brush wear reduces downtime and long-term costs by 50% vs. traditional motors.
Ultra-Low Noise & Heat: Operates at ≤75dB with a temperature rise ≤25℃, minimizing patient anxiety and surgeon fatigue.
High Torque: Maintains 10 N/M torque at 300 RPM for precise bone milling.

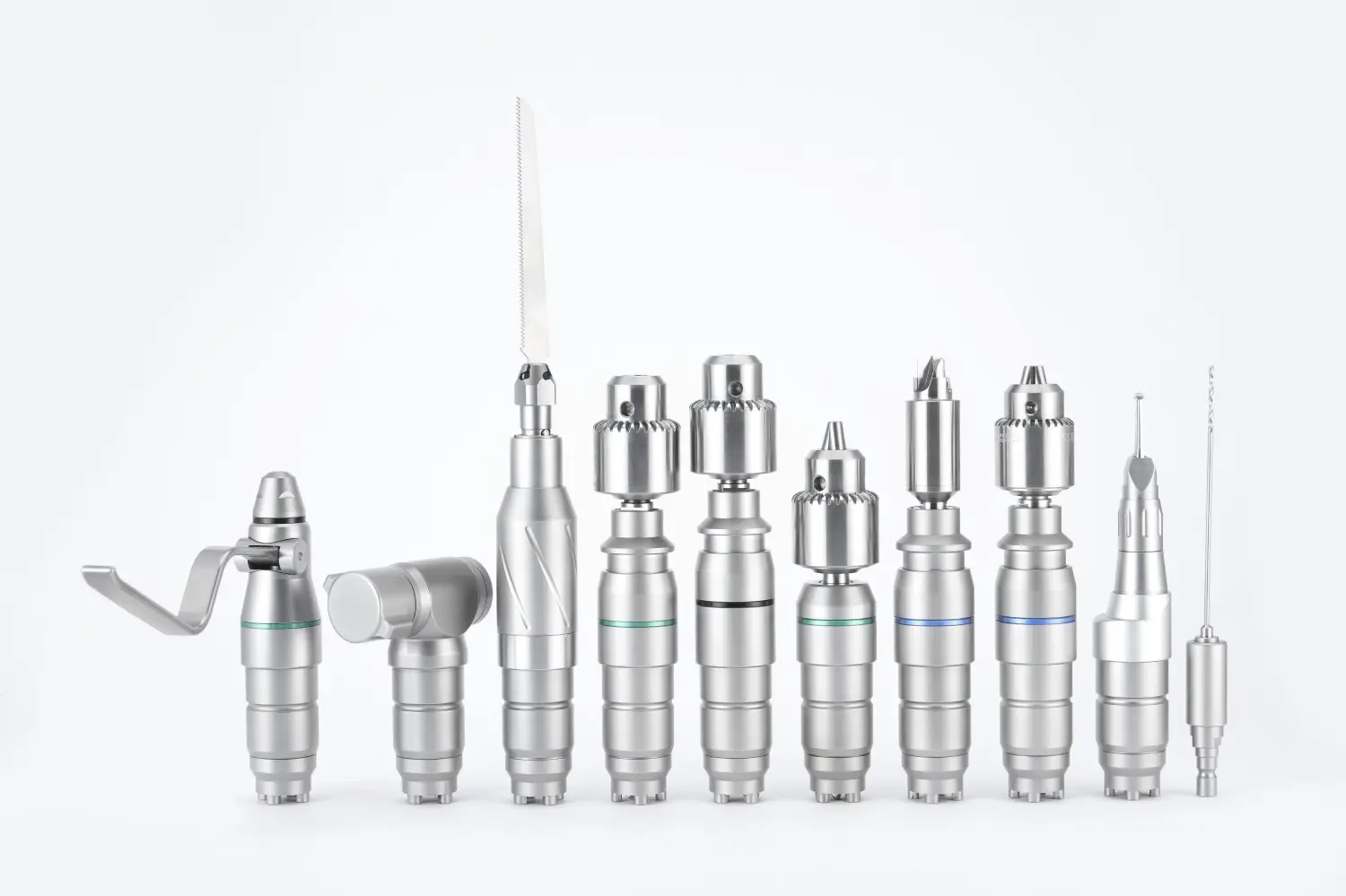

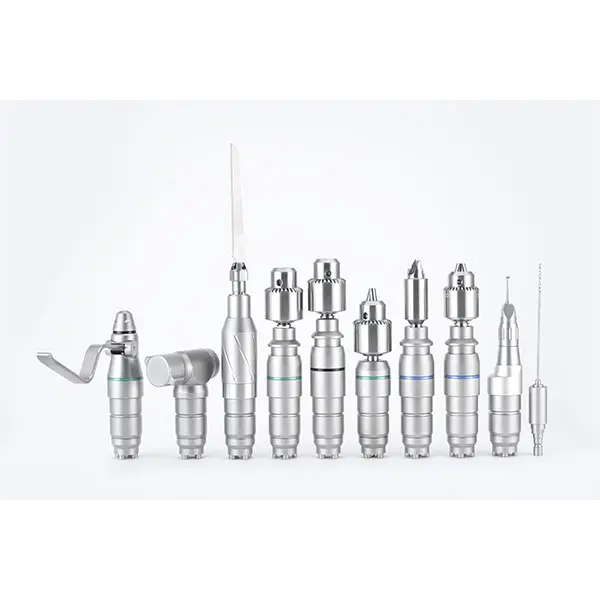

Multi-Attachment Surgical Versatility
Engineering Precision: Fully sealed motor with dust-proof design and ±15% speed accuracy across all modes.
Surgical Applications: Orthopedics, Trauma & Cranial, Veterinary & Dental.
Brushless motors offer higher power output (180W+), eliminate the need for carbon brush replacement, reduce friction/heat, and extend the device lifespan to over 50,000 hours.
The chuck system is detachable and fully autoclavable, ensuring high standards of sterilization for surgical environments.
The system operates at a low noise level of ≤75 dB, which helps in reducing surgeon fatigue and patient anxiety during local anesthesia procedures.
Yes, with the dedicated cranial attachments and precise speed control (0-850 RPM), it is highly effective for neurosurgery and skull remodeling.
Yes, the system is fully compliant with ISO 13485, FDA, and CE certifications for global medical use.
For slow-speed operations (0-300 RPM), the system delivers a high torque of ≥10 N/M, ideal for precise screw fixation.
