Home > Orthopedic Power Tools - Brushless motor > SNK Medium-Speed Cannulated Drill S1020/S2020 – High-Torque Orthopedic System with Brushless Motor & Quick-Charge Battery
SNK Medium-Speed Cannulated Drill S1020/S2020 – High-Torque Orthopedic System with Brushless Motor & Quick-Charge Battery
1 / 1
SNK Medium-Speed Cannulated Drill S1020/S2020 – High-Torque Orthopedic System with Brushless Motor & Quick-Charge Battery

SNK Medium-Speed Cannulated Drill S1020/S2020 – High-Torque Orthopedic System with Brushless Motor & Quick-Charge Battery

The SNK Medium-Speed Cannulated Drill S1020/S2020 delivers precision and power for trauma and orthopedic surgeries. Featuring a brushless motor (≥180W output) with 0-680 RPM ±15% speed control, this lightweight (1450g) tool generates ≥8.5 N/M torque for controlled bone drilling and screw placement. The Ø4.5mm hollow shaft ensures guide-wire compatibility, while the Sony lithium battery enables 60-minute fast charging for uninterrupted use. With ultra-low noise (≤45dB), minimal heat (≤25℃), and an autoclavable design (134°C excluding battery), SNK’s drill meets ISO 13485/FDA standards, offering surgeons reliability, efficiency, and compliance in critical procedures.

Send Inquiry

Product Description

Technical Specification

ModelS1020/S2020
Motor TypeBrushless, fully sealed
Speed Range0-680 RPM (±15%)
Output Torque≥8.5 N/M
Power Output≥180W
Noise Level≤45 dB
Temperature Rise≤25℃
Chuck Diameter0-8mm (customizable)
Hollow Shaft DiameterØ4.5mm
Weight1450g
Battery12V 2600mAh lithium
Charging Time60 minutes (full charge)
Radial Runout<0.1mm
SterilizationAutoclavable at 134°C (excl. battery)
CertificationsISO 13485, FDA, CE

Core Technology & Features

High-Torque Brushless Motor

The fully sealed brushless motor eliminates carbon brushes, reducing wear and operational downtime while delivering ≥180W power and ≥8.5 N/M torque for fracture fixation.

Surgical Precision

±15% speed accuracy ensures stability in delicate drilling. The Ø4.5mm hollow shaft integrates seamlessly with guide wires for cannulated screw placements.

Medical Reliability

Radial runout <0.1mm ensures accuracy. The handpiece is fully autoclavable at 134°C to meet strict infection control protocols.

Product Gallery

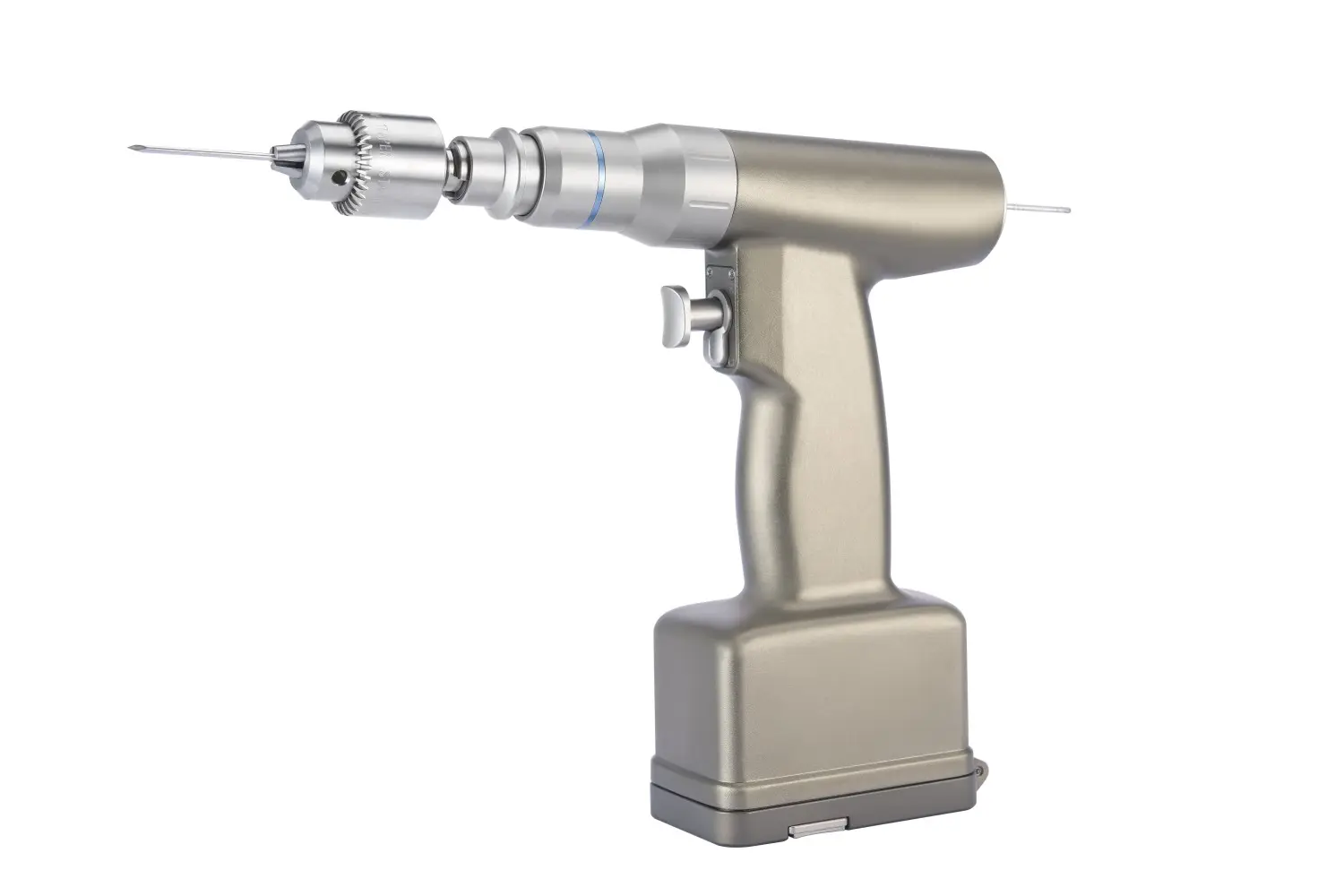

Cannulate drill detail

Applications & Excellence

Clinical Applications

  • Trauma Surgery: Cannulated screw fixation, intramedullary nailing.
  • Orthopedic Reconstruction: Spinal instrumentation, joint replacements.
  • Ambulatory Care: Portable design for clinical environments.

Why Choose This System?

  • Cost Efficiency: Eliminates brush replacements.
  • Global Compliance: ISO 13485, FDA, and CE standards.
  • Ergonomic Build: 1.45kg balanced weight reduces fatigue.

Frequently Asked Questions

1. What is the maximum sterilization temperature for the handpiece? The handpiece is fully autoclavable at temperatures up to 134°C. Please note that the battery should be removed before sterilization.
2. How long does the battery take to reach a full charge? The high-performance 12V 2600mAh lithium battery requires approximately 60 minutes for a complete charge.
3. What are the advantages of the brushless motor technology? The brushless motor is fully sealed and maintenance-free. It provides higher torque (≥8.5 N/M), longer lifespan (50,000+ hours), and significantly quieter operation (≤45 dB).
4. Can this drill be used for cannulated screw procedures? Yes, the device features a hollow shaft design with a Ø4.5mm diameter, specifically optimized for guide wire integration and cannulated screw placement.
5. What type of warranty is provided for this medical tool? The surgical tool itself comes with an 18-month warranty, while the battery is covered for 6 months.
6. Is the drill speed adjustable for different procedures? Yes, the drill offers a precision speed range of 0-680 RPM with ±15% accuracy, allowing for stable control across various trauma and orthopedic surgeries.
