| Parameter | Details |
|---|---|

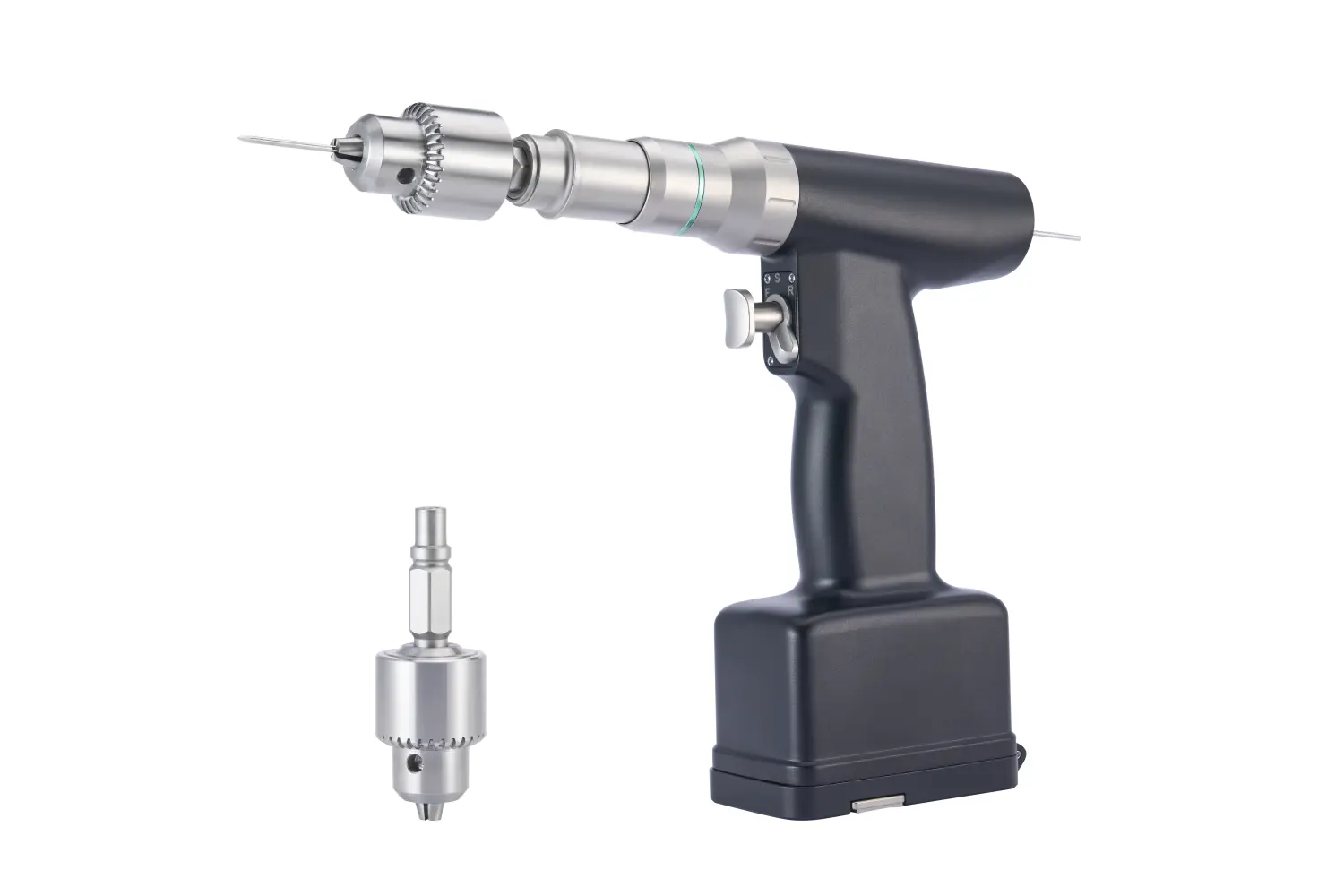

| Model | S1010 / S2010 |
| Motor Type | Brushless hollow-shaft, fully sealed |
| Speed Range | 0-1250 RPM (±15%) |
| Output Torque | ≥5.8 N/M |
| Power Output | ≥180W |
| Noise Level | ≤45 dB (Ultra-quiet) |
| Temperature Rise | ≤25℃ |
| Chuck Diameter | 0-8mm (customizable) |
| Hollow Shaft Diameter | Ø4.5mm |
| Weight | 1450g |
| Battery | 12V 2600mAh high-performance lithium |
| Charging Time | 60 minutes |
| Radial Runout | <0.1mm |
| Sterilization | Autoclavable at 134°C (handpiece only) |
| Certifications | ISO 13485, FDA, CE |
The fully sealed brushless motor eliminates carbon brushes, providing zero maintenance and high efficiency. It delivers ≥180W power and ≥5.8 N/M torque even at high speeds.
±15% speed accuracy ensures stable performance in delicate procedures such as fracture fixation or spinal fusion. Radial runout of <0.1mm ensures extreme drilling precision.
Operating at ≤45dB, it is quieter than a whisper. The minimal temperature rise (≤25℃) enhances both surgeon comfort and patient safety during operations.
Ideal for fracture repairs, cannulated screw placements, and intramedullary nailing.
Excellent for joint replacements and complex spinal instrumentation procedures.
Constructed with stainless steel chucks (HRC53 hardness) and corrosion-resistant housings for 50,000+ hours of service life.
A: The handpiece is fully autoclavable at 134°C. Please ensure the battery is removed before the sterilization process.
A: Brushless motors eliminate carbon dust, reduce heat generation, and offer a longer lifespan without the need for periodic maintenance or brush replacements.
A: The 2600mAh lithium battery charges fully in 60 minutes and is designed to last through multiple standard orthopedic procedures.
A: Yes, it features a Ø4.5mm hollow shaft designed specifically for guide wire integration in trauma surgeries.
A: The device maintains a radial runout of less than 0.1mm, ensuring high accuracy and minimizing bone tissue damage.
A: Yes, the charger is compatible with AC 100-240V, making it suitable for use in medical facilities worldwide.
